Product parameter
Copper is the main trace element with high strength and can be strengthened by heat treatment. The strength is only second to 7 series. It's usually used in structural materials, but also can be forged. It could be used for structural parts of aircraft, structure parts of building and transportation tools, mould, mechanical parts requiring high strength, cabinet shell etc.
Chemical composition ,Standard (max), W% | Al: balance | ||||||
Si | Fe | Cu | Mn | Mg | Zn | Cr | Other |
0.5 | 0.5 | 3.8-4.9 | 0.3-0.9 | 1.2-1.8 | 0.25 | 0.1 | 0.2 |
Mechanical Property (Standard Value) | T4 | H112 |
Tensile Strength(MPa) | ≥ 425 | 220-228 |
Yield Strength(MPa) | ≥275 | 147-150 |
Elongation(%) | ≥16 | 18-20 |
The above values is sbjuect to be different due to the different thickness.
Product Description
2024 aluminum plate is widely used in the aerospace field. It is used in fuselage structurals, wing tension members, shear webs, ribs and other structural areas of aircraft that require stiffness, fatigue performance and good strength. Sheet products, usually alclad, are extensively used in commercial and military aircraft for fuselage skins, wing skins and engine areas where elevated temperature up to 121℃ are often encountered.
2024 aluminum plate is used in the automotive industry, such as truck wheels, engine components, and vehicle body structural components. It can bear high pressure and load, ensuring the stable operation of the engine and improving the performance and lightweight of vehicles.
In the machinery manufacturing field, 2024 aluminum plate is used to manufacture various mechanical parts with high strength requirements, such as gears, shafts, and connectors. It can also be used for mold manufacturing, such as die-casting molds and injection molds, improving the service life and production efficiency of molds. In addition, it is used in some key parts of automation equipment, such as robot arms and guide rails.
2024 aluminum plate has good heat dissipation performance and can be used for computer hard drives to help them remain stable during high-speed operation. It is also used in the outer shells of mobile phones, cameras and other electronic products to protect internal electronic components while achieving lightweight and miniaturization. In addition, it is used in heat sinks of air-conditioner outdoor units to improve cooling efficiency.
The interior has been scanned and tested by various advanced instruments.

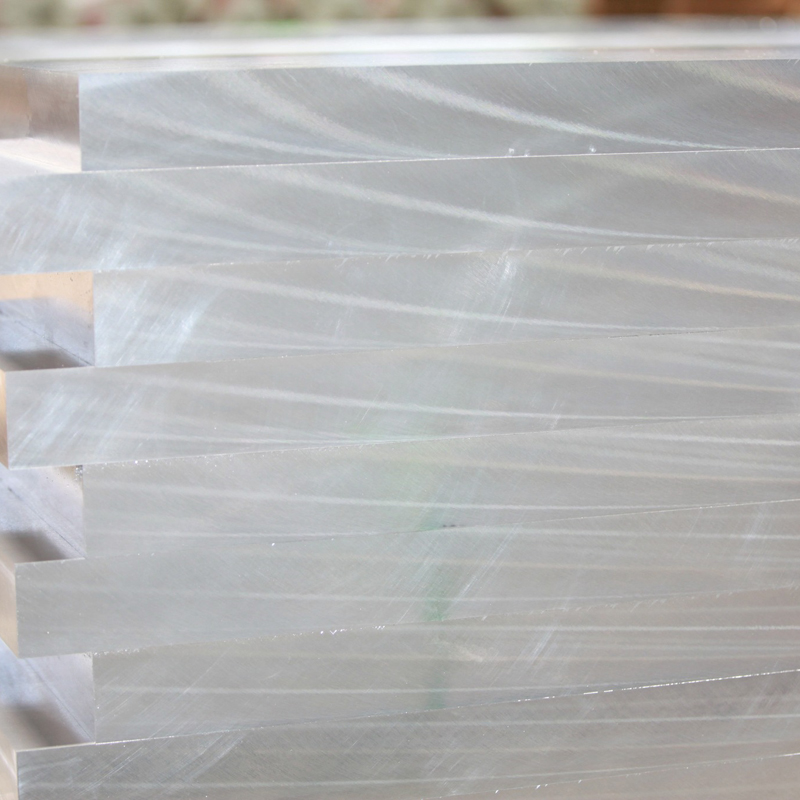

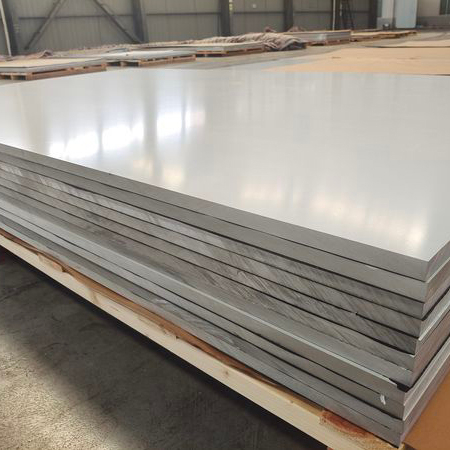

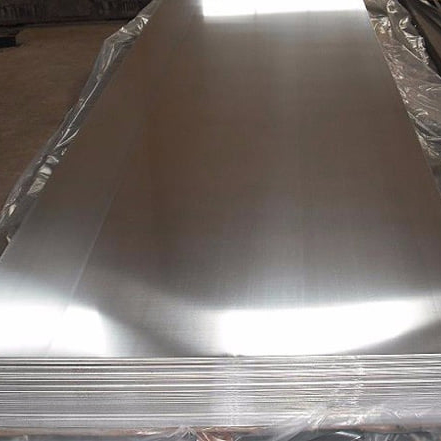

Smooth surface, high flatness.
Thickness tolerance about ±1%.

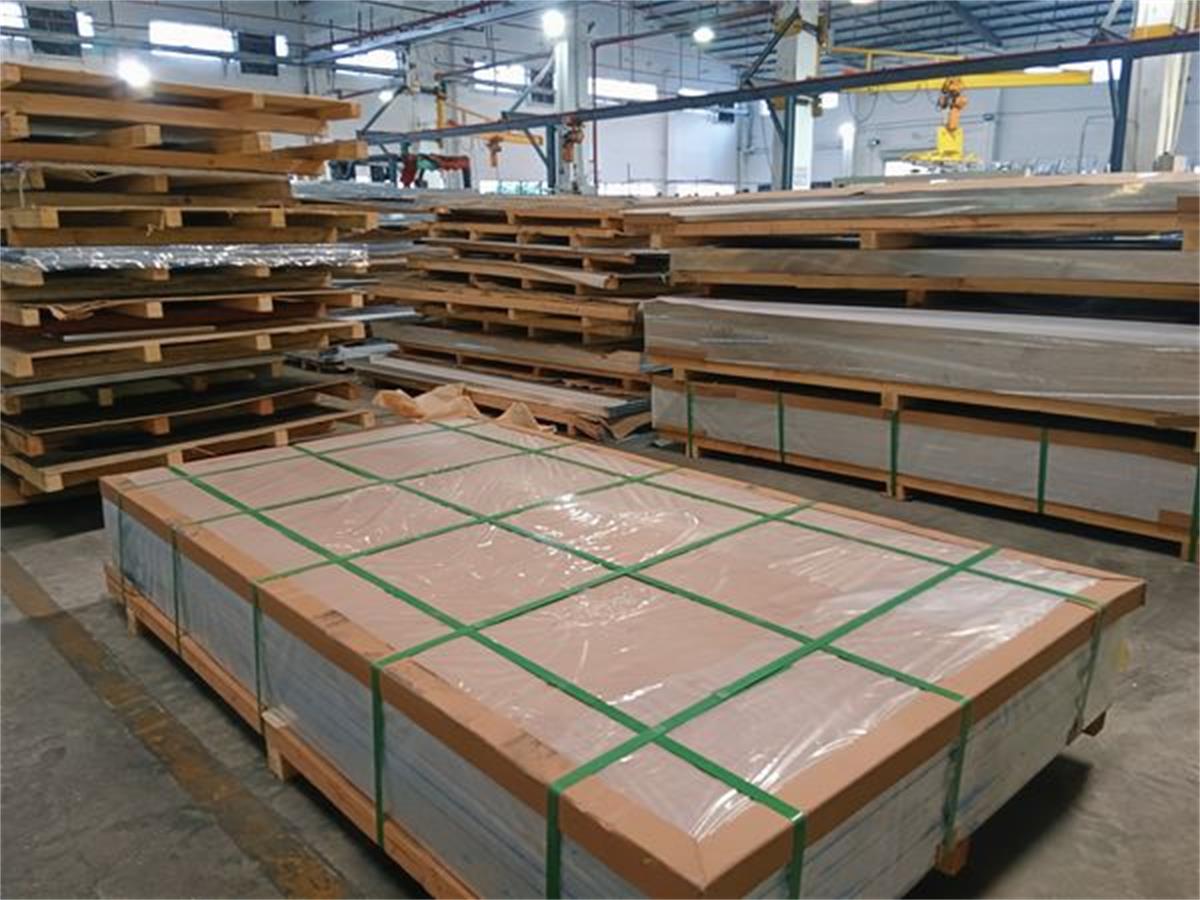

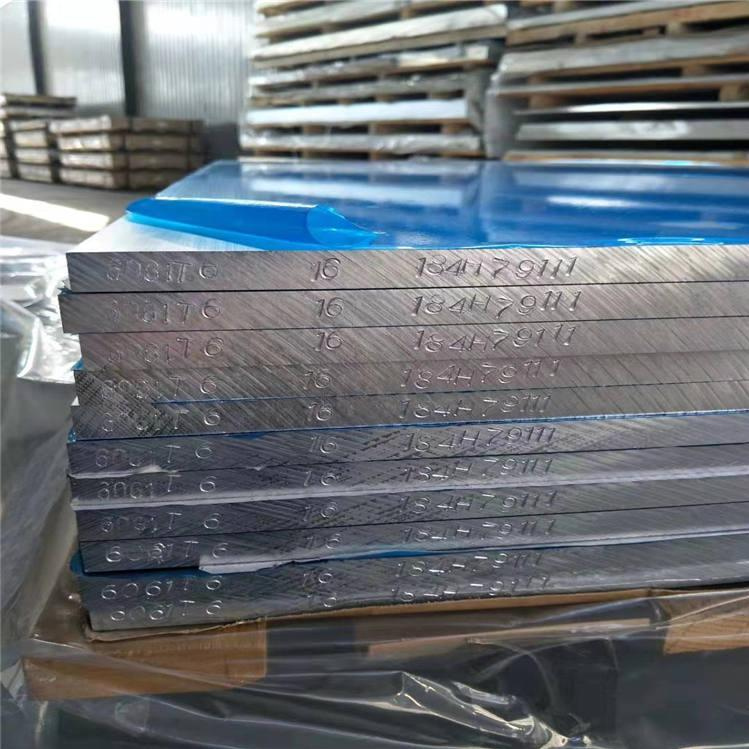

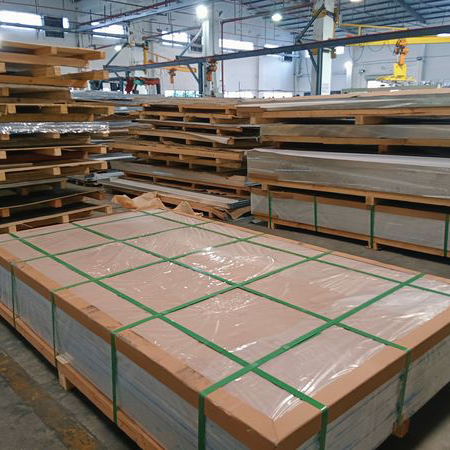

Thickness<100mm, there is a protective film covering the surface (random color).
We have more than ten cutting equipment and machines.
Thickness<8mm, we sale whole plate only. The whole plate is able to be cut to smaller size.

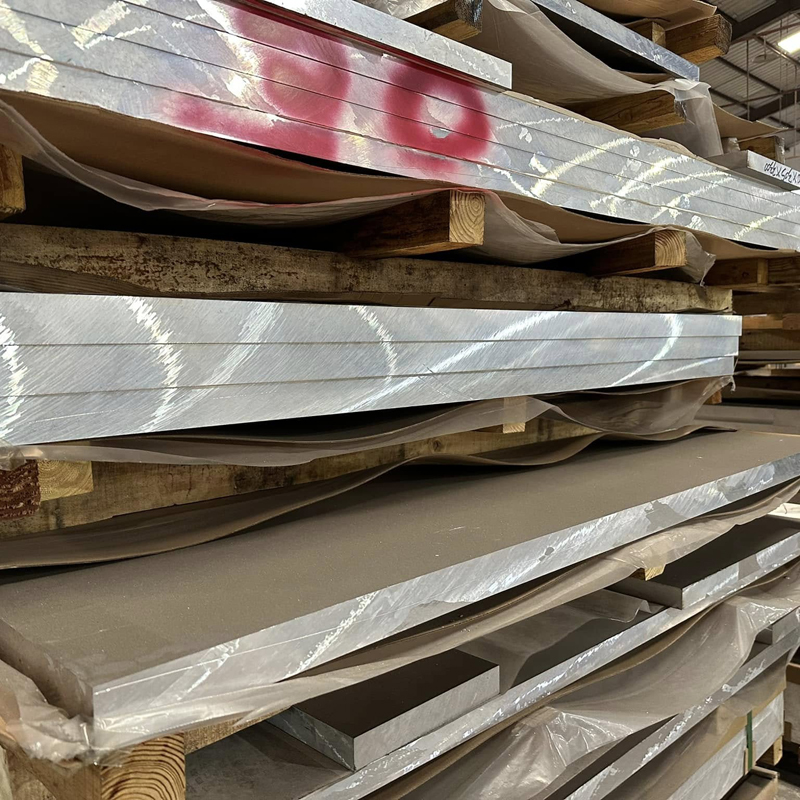

Thickness not less than 8mm, we sale the small pieces in any dimensions.
Our system ensures all the products are traceable to provide the original factory certificate.
