Product parameter
With a high content of Magnesium, it has the highest hardness in non - heat - treated alloys. The advantages include good seawater resistance, low temperature, suitable for welding structure with high corrosion resistance.
It could be used in offshore installations, ship equipment, container ships, automobile and aircraft plate welding parts, tooling, machining, large equipment components etc,.
Chemical composition ,Standard (max), W% | Al: balance | ||||||
Si | Fe | Cu | Mn | Mg | Zn | Cr | Ti |
0.4 | 0.4 | 0.1 | 0.4-1 | 4.0-4.9 | 0.25 | 0.05-0.25 | 0.15 |
Mechanical Property reference value 45mm thickness | O | H111 | H112 |
Tensile Strength(MPa) | 100-125 | ≥ 270 | ≥275 |
Yield Strength(MPa) | 215-255 | ≥115 | ≥125 |
Elongation(%) | 15-18 | ≥10 | ≥10 |
The above values is sbjuect to be different due to the different thickness.
Product Description
AA 5083 a high magnesium alloy with traces of manganese and chromium is known for exceptional performance in extreme environments. AA 5083 is highly resistant to attack by both seawater and Industrial chemical environments. AA 5083 also retains exceptional strength after welding. It has the highest strength of the non heat treatable alloys but is not recommended for use in temperature in the excess of 65° Celsius.
Because of its strength and corrosion resistant properties AA 5083 is widely used in the Ship Building industry. It is also ideally used in the following industries as well : Marine applications, Pressure vessels, Drilling Rigs, Transportation equipments, TV/Communication Towers to name a few.
The interior has been scanned and tested by various advanced instruments.

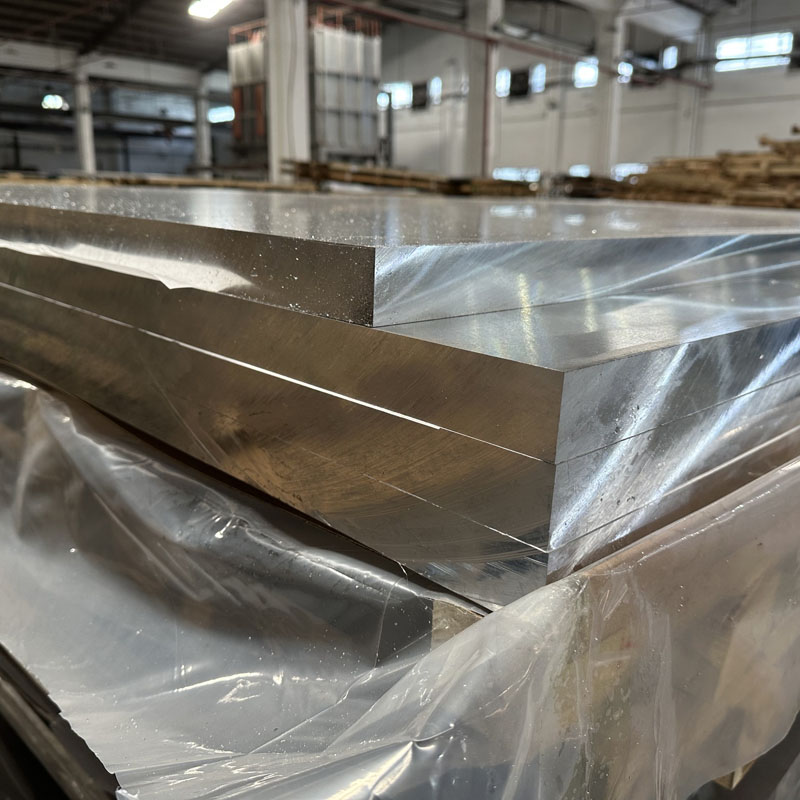

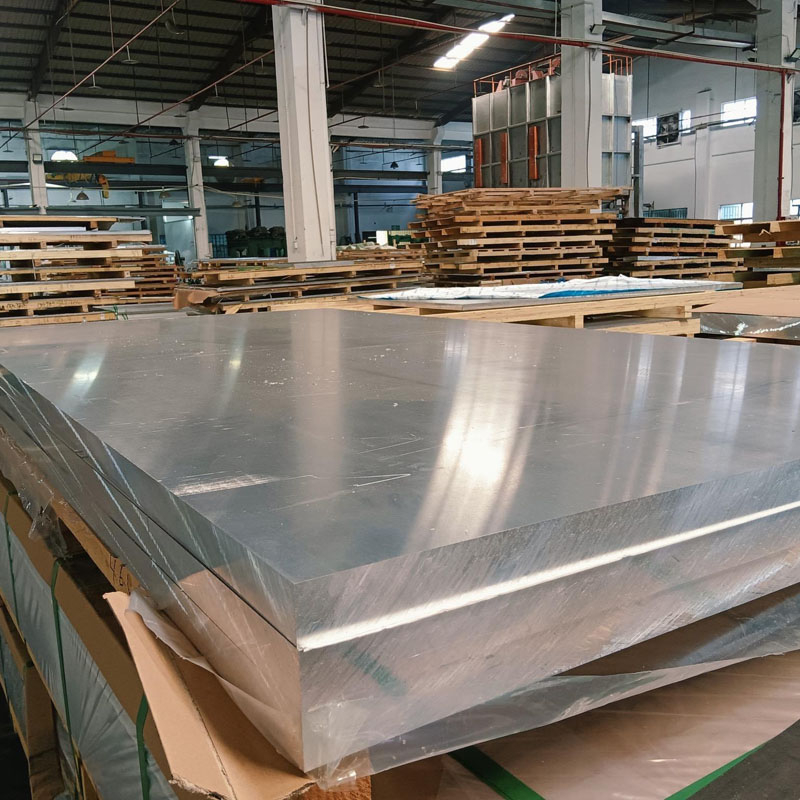

Smooth surface, high flatness.
Thickness tolerance about ±1%.
Thickness<100mm, there is a protective film covering the surface (random color).

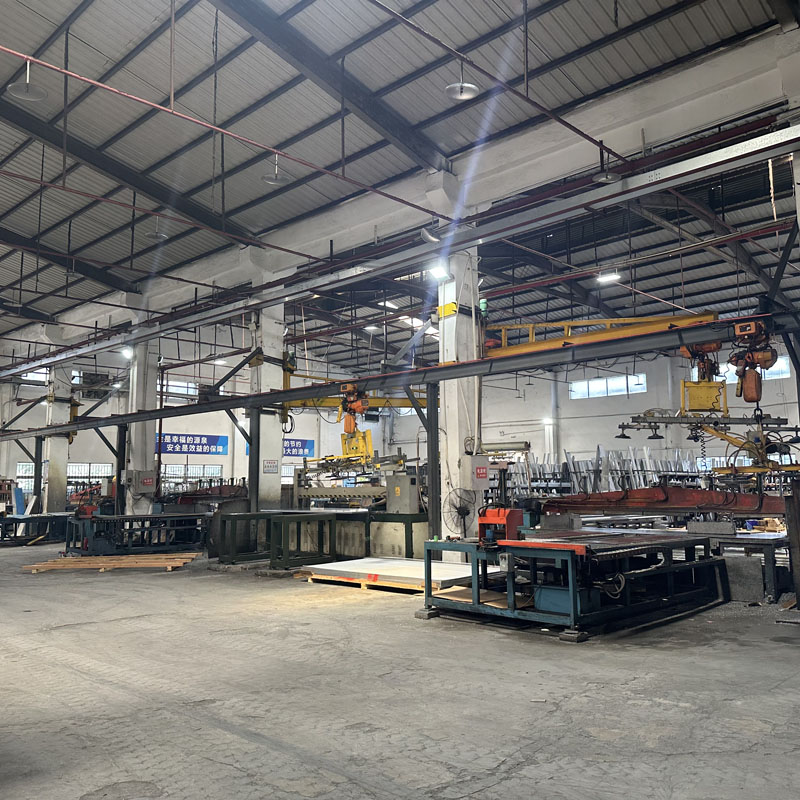

We have more than ten cutting equipment and machines.
Thickness<8mm, we sale whole plate only. The whole plate is able to be cut to smaller size.
Thickness not less than 8mm, we sale the small pieces in any dimensions.
Our system ensures all the products are traceable to provide the original factory certificate.
